BiCGSTAB< _MatrixType, _Preconditioner > Class Template Reference

Detailed Description

template<typename _MatrixType, typename _Preconditioner>
class Eigen::BiCGSTAB< _MatrixType, _Preconditioner >

A bi conjugate gradient stabilized solver for sparse square problems.

This class allows to solve for A.x = b sparse linear problems using a bi conjugate gradient stabilized algorithm. The vectors x and b can be either dense or sparse.

Template Parameters

_MatrixType	the type of the sparse matrix A, can be a dense or a sparse matrix.
_Preconditioner	the type of the preconditioner. Default is DiagonalPreconditioner

The maximal number of iterations and tolerance value can be controlled via the setMaxIterations() and setTolerance() methods. The defaults are the size of the problem for the maximal number of iterations and NumTraits<Scalar>::epsilon() for the tolerance.

This class can be used as the direct solver classes. Here is a typical usage example:

int n = 10000;
VectorXd x(n), b(n);
SparseMatrix<double> A(n,n);
// fill A and b
BiCGSTAB<SparseMatrix<double> > solver;
solver.compute(A);
x = solver.solve(b);
std::cout << "#iterations:     " << solver.iterations() << std::endl;
std::cout << "estimated error: " << solver.error()      << std::endl;
// update b, and solve again
x = solver.solve(b);

By default the iterations start with x=0 as an initial guess of the solution. One can control the start using the solveWithGuess() method.

See also

class SimplicialCholesky, DiagonalPreconditioner, IdentityPreconditioner

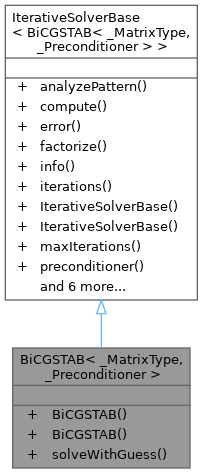

Inheritance diagram for BiCGSTAB< _MatrixType, _Preconditioner >:

Public Member Functions
BiCGSTAB< _MatrixType, _Preconditioner > &	analyzePattern (const EigenBase< InputDerived > &A)
	BiCGSTAB ()
template<typename MatrixDerived>
	BiCGSTAB (const EigenBase< MatrixDerived > &A)
BiCGSTAB< _MatrixType, _Preconditioner > &	compute (const EigenBase< InputDerived > &A)
RealScalar	error () const
BiCGSTAB< _MatrixType, _Preconditioner > &	factorize (const EigenBase< InputDerived > &A)
ComputationInfo	info () const
int	iterations () const
int	maxIterations () const
Preconditioner &	preconditioner ()
const Preconditioner &	preconditioner () const
BiCGSTAB< _MatrixType, _Preconditioner > &	setMaxIterations (int maxIters)
BiCGSTAB< _MatrixType, _Preconditioner > &	setTolerance (const RealScalar &tolerance)
const internal::solve_retval< BiCGSTAB< _MatrixType, _Preconditioner >, Rhs >	solve (const MatrixBase< Rhs > &b) const
const internal::sparse_solve_retval< IterativeSolverBase, Rhs >	solve (const SparseMatrixBase< Rhs > &b) const
template<typename Rhs, typename Guess>
const internal::solve_retval_with_guess< BiCGSTAB, Rhs, Guess >	solveWithGuess (const MatrixBase< Rhs > &b, const Guess &x0) const
RealScalar	tolerance () const

Constructor & Destructor Documentation

BiCGSTAB() [1/2]

template<typename _MatrixType, typename _Preconditioner>

BiCGSTAB ( )

inline

Default constructor.

Referenced by solveWithGuess().

BiCGSTAB() [2/2]

template<typename _MatrixType, typename _Preconditioner>

template<typename MatrixDerived>

BiCGSTAB ( const EigenBase< MatrixDerived > & A )

inlineexplicit

Initialize the solver with matrix A for further Ax=b solving.

This constructor is a shortcut for the default constructor followed by a call to compute().

Warning

this class stores a reference to the matrix A as well as some precomputed values that depend on it. Therefore, if A is changed this class becomes invalid. Call compute() to update it with the new matrix A, or modify a copy of A.

Member Function Documentation

analyzePattern()

BiCGSTAB< _MatrixType, _Preconditioner > & analyzePattern ( const EigenBase< InputDerived > & A )

inlineinherited

Initializes the iterative solver for the sparcity pattern of the matrix A for further solving Ax=b problems.

Currently, this function mostly call analyzePattern on the preconditioner. In the future we might, for instance, implement column reodering for faster matrix vector products.

compute()

BiCGSTAB< _MatrixType, _Preconditioner > & compute ( const EigenBase< InputDerived > & A )

inlineinherited

Initializes the iterative solver with the matrix A for further solving Ax=b problems.

Currently, this function mostly initialized/compute the preconditioner. In the future we might, for instance, implement column reodering for faster matrix vector products.

Warning

this class stores a reference to the matrix A as well as some precomputed values that depend on it. Therefore, if A is changed this class becomes invalid. Call compute() to update it with the new matrix A, or modify a copy of A.

error()

RealScalar error ( ) const

inlineinherited

Returns

the tolerance error reached during the last solve

factorize()

BiCGSTAB< _MatrixType, _Preconditioner > & factorize ( const EigenBase< InputDerived > & A )

inlineinherited

Initializes the iterative solver with the numerical values of the matrix A for further solving Ax=b problems.

Currently, this function mostly call factorize on the preconditioner.

Warning

this class stores a reference to the matrix A as well as some precomputed values that depend on it. Therefore, if A is changed this class becomes invalid. Call compute() to update it with the new matrix A, or modify a copy of A.

info()

ComputationInfo info ( ) const

inlineinherited

Returns

Success if the iterations converged, and NoConvergence otherwise.

iterations()

int iterations ( ) const

inlineinherited

Returns

the number of iterations performed during the last solve

maxIterations()

int maxIterations ( ) const

inlineinherited

Returns

the max number of iterations

preconditioner() [1/2]

Preconditioner & preconditioner ( )

inlineinherited

Returns

a read-write reference to the preconditioner for custom configuration.

preconditioner() [2/2]

const Preconditioner & preconditioner ( ) const

inlineinherited

Returns

a read-only reference to the preconditioner.

setMaxIterations()

BiCGSTAB< _MatrixType, _Preconditioner > & setMaxIterations ( int maxIters )

inlineinherited

Sets the max number of iterations

setTolerance()

BiCGSTAB< _MatrixType, _Preconditioner > & setTolerance ( const RealScalar & tolerance )

inlineinherited

Sets the tolerance threshold used by the stopping criteria

solve() [1/2]

const internal::solve_retval< BiCGSTAB< _MatrixType, _Preconditioner >, Rhs > solve ( const MatrixBase< Rhs > & b ) const

inlineinherited

Returns

the solution x of using the current decomposition of A.

See also

compute()

solve() [2/2]

const internal::sparse_solve_retval< IterativeSolverBase, Rhs > solve ( const SparseMatrixBase< Rhs > & b ) const

inlineinherited

Returns

the solution x of using the current decomposition of A.

See also

compute()

solveWithGuess()

template<typename _MatrixType, typename _Preconditioner>

template<typename Rhs, typename Guess>

const internal::solve_retval_with_guess< BiCGSTAB, Rhs, Guess > solveWithGuess ( const MatrixBase< Rhs > & b, const Guess & x0 ) const

inline

Returns

the solution x of using the current decomposition of A x0 as an initial solution.

See also

compute()

References BiCGSTAB().

tolerance()

RealScalar tolerance ( ) const

inlineinherited

Returns

the tolerance threshold used by the stopping criteria

---

The documentation for this class was generated from the following file:

• BiCGSTAB.h
