Detailed Description

template<typename Derived>
class Eigen::SparseMatrixBase< Derived >

Base class of any sparse matrices or sparse expressions.

Template Parameters

Derived

This class can be extended with the help of the plugin mechanism described on the page Customizing/Extending Eigen by defining the preprocessor symbol EIGEN_SPARSEMATRIXBASE_PLUGIN.

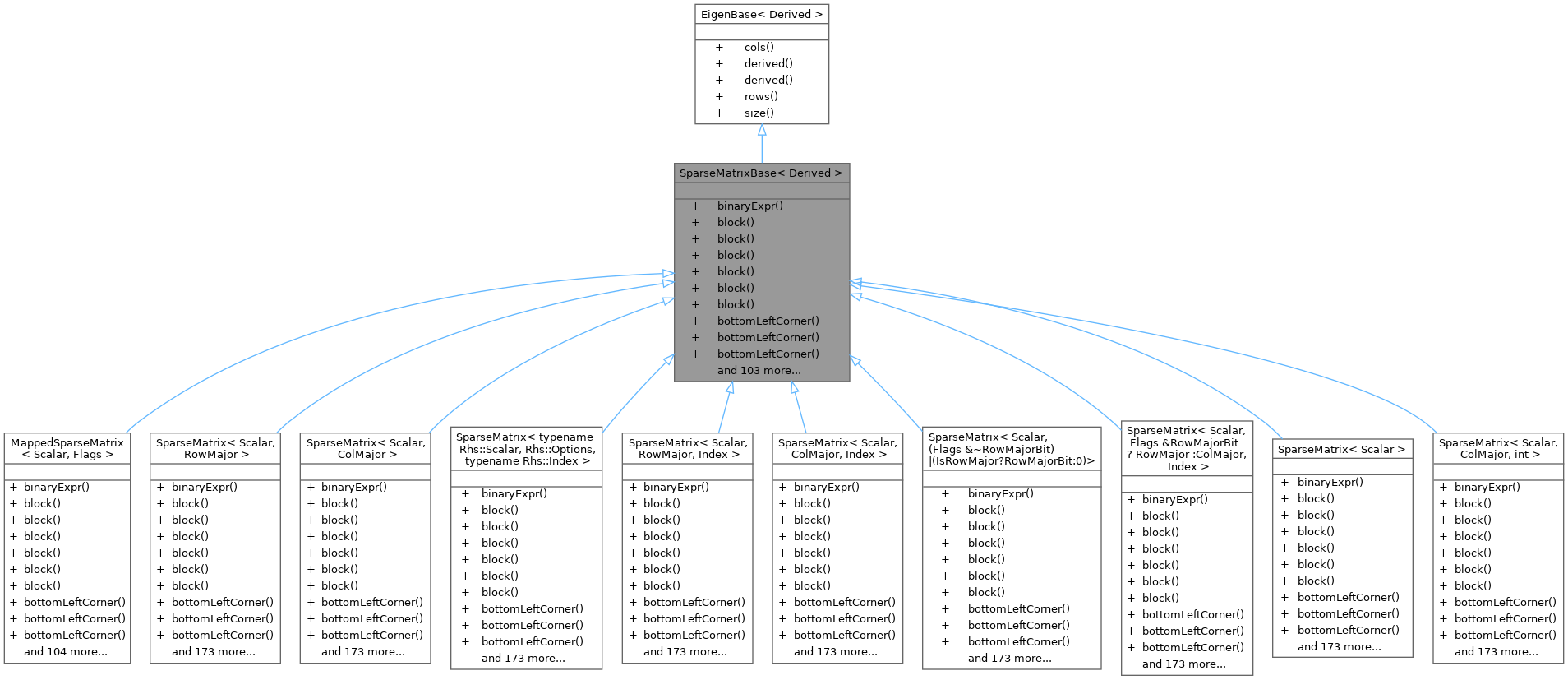

Inheritance diagram for SparseMatrixBase< Derived >:

Public Types
enum	{ RowsAtCompileTime , ColsAtCompileTime , SizeAtCompileTime , MaxRowsAtCompileTime , MaxColsAtCompileTime , MaxSizeAtCompileTime , IsVectorAtCompileTime , Flags , CoeffReadCost , IsRowMajor , InnerSizeAtCompileTime }

Public Member Functions
template<typename CustomBinaryOp, typename OtherDerived>
const CwiseBinaryOp< CustomBinaryOp, const Derived, const OtherDerived >	binaryExpr (const Eigen::SparseMatrixBase< OtherDerived > &other, const CustomBinaryOp &func=CustomBinaryOp()) const

template<int BlockRows, int BlockCols>
Block< Derived, BlockRows, BlockCols >	block (Index startRow, Index startCol)

template<int BlockRows, int BlockCols>
const Block< const Derived, BlockRows, BlockCols >	block (Index startRow, Index startCol) const

Block< Derived >	block (Index startRow, Index startCol, Index blockRows, Index blockCols)

template<int BlockRows, int BlockCols>
Block< Derived, BlockRows, BlockCols >	block (Index startRow, Index startCol, Index blockRows, Index blockCols)

const Block< const Derived >	block (Index startRow, Index startCol, Index blockRows, Index blockCols) const

template<int BlockRows, int BlockCols>
const Block< const Derived, BlockRows, BlockCols >	block (Index startRow, Index startCol, Index blockRows, Index blockCols) const

template<int CRows, int CCols>
Block< Derived, CRows, CCols >	bottomLeftCorner ()

template<int CRows, int CCols>
const Block< const Derived, CRows, CCols >	bottomLeftCorner () const

Block< Derived >	bottomLeftCorner (Index cRows, Index cCols)

template<int CRows, int CCols>
Block< Derived, CRows, CCols >	bottomLeftCorner (Index cRows, Index cCols)

const Block< const Derived >	bottomLeftCorner (Index cRows, Index cCols) const

template<int CRows, int CCols>
const Block< const Derived, CRows, CCols >	bottomLeftCorner (Index cRows, Index cCols) const

template<int CRows, int CCols>
Block< Derived, CRows, CCols >	bottomRightCorner ()

template<int CRows, int CCols>
const Block< const Derived, CRows, CCols >	bottomRightCorner () const

Block< Derived >	bottomRightCorner (Index cRows, Index cCols)

template<int CRows, int CCols>
Block< Derived, CRows, CCols >	bottomRightCorner (Index cRows, Index cCols)

const Block< const Derived >	bottomRightCorner (Index cRows, Index cCols) const

template<int CRows, int CCols>
const Block< const Derived, CRows, CCols >	bottomRightCorner (Index cRows, Index cCols) const

RowsBlockXpr	bottomRows (Index n)

ConstRowsBlockXpr	bottomRows (Index n) const

template<int N>
NRowsBlockXpr< N >::Type	bottomRows (Index n=N)

template<int N>
ConstNRowsBlockXpr< N >::Type	bottomRows (Index n=N) const

template<typename NewType>
internal::cast_return_type< Derived, constCwiseUnaryOp< internal::scalar_cast_op< typenameinternal::traits< Derived >::Scalar, NewType >, constDerived > >::type	cast () const

ColXpr	col (Index i)

ConstColXpr	col (Index i) const

Index	cols () const

ConjugateReturnType	conjugate () const

const CwiseUnaryOp< internal::scalar_abs_op< Scalar >, const Derived >	cwiseAbs () const

const CwiseUnaryOp< internal::scalar_abs2_op< Scalar >, const Derived >	cwiseAbs2 () const

template<typename OtherDerived>
const CwiseBinaryOp< std::equal_to< Scalar >, const Derived, const OtherDerived >	cwiseEqual (const Eigen::SparseMatrixBase< OtherDerived > &other) const

const CwiseScalarEqualReturnType	cwiseEqual (const Scalar &s) const

const CwiseUnaryOp< internal::scalar_inverse_op< Scalar >, const Derived >	cwiseInverse () const

template<typename OtherDerived>
const CwiseBinaryOp< internal::scalar_max_op< Scalar >, const Derived, const OtherDerived >	cwiseMax (const Eigen::SparseMatrixBase< OtherDerived > &other) const

const CwiseBinaryOp< internal::scalar_max_op< Scalar >, const Derived, const ConstantReturnType >	cwiseMax (const Scalar &other) const

template<typename OtherDerived>
const CwiseBinaryOp< internal::scalar_min_op< Scalar >, const Derived, const OtherDerived >	cwiseMin (const Eigen::SparseMatrixBase< OtherDerived > &other) const

const CwiseBinaryOp< internal::scalar_min_op< Scalar >, const Derived, const ConstantReturnType >	cwiseMin (const Scalar &other) const

template<typename OtherDerived>
const CwiseBinaryOp< std::not_equal_to< Scalar >, const Derived, const OtherDerived >	cwiseNotEqual (const Eigen::SparseMatrixBase< OtherDerived > &other) const

template<typename OtherDerived>
const CwiseBinaryOp< internal::scalar_product_op< typename Derived ::Scalar, typename OtherDerived ::Scalar >, const Derived, const OtherDerived >	cwiseProduct (const Eigen::SparseMatrixBase< OtherDerived > &other) const

template<typename OtherDerived>
const CwiseBinaryOp< internal::scalar_quotient_op< Scalar >, const Derived, const OtherDerived >	cwiseQuotient (const Eigen::SparseMatrixBase< OtherDerived > &other) const

const CwiseUnaryOp< internal::scalar_sqrt_op< Scalar >, const Derived >	cwiseSqrt () const

Derived &	derived ()

const Derived &	derived () const

const internal::eval< Derived >::type	eval () const

SegmentReturnType	head (Index n)

ConstSegmentReturnType	head (Index n) const

template<int N>
FixedSegmentReturnType< N >::Type	head (Index n=N)

template<int N>
ConstFixedSegmentReturnType< N >::Type	head (Index n=N) const

NonConstImagReturnType	imag ()

const ImagReturnType	imag () const

Index	innerSize () const

InnerVectorReturnType	innerVector (Index outer)

const ConstInnerVectorReturnType	innerVector (Index outer) const

InnerVectorsReturnType	innerVectors (Index outerStart, Index outerSize)

const ConstInnerVectorsReturnType	innerVectors (Index outerStart, Index outerSize) const

bool	isVector () const

ColsBlockXpr	leftCols (Index n)

ConstColsBlockXpr	leftCols (Index n) const

template<int N>
NColsBlockXpr< N >::Type	leftCols (Index n=N)

template<int N>
ConstNColsBlockXpr< N >::Type	leftCols (Index n=N) const

template<int N>
NColsBlockXpr< N >::Type	middleCols (Index startCol, Index n=N)

template<int N>
ConstNColsBlockXpr< N >::Type	middleCols (Index startCol, Index n=N) const

ColsBlockXpr	middleCols (Index startCol, Index numCols)

ConstColsBlockXpr	middleCols (Index startCol, Index numCols) const

RowsBlockXpr	middleRows (Index startRow, Index n)

ConstRowsBlockXpr	middleRows (Index startRow, Index n) const

template<int N>
NRowsBlockXpr< N >::Type	middleRows (Index startRow, Index n=N)

template<int N>
ConstNRowsBlockXpr< N >::Type	middleRows (Index startRow, Index n=N) const

Index	nonZeros () const

template<typename OtherDerived>
const SparseDenseProductReturnType< Derived, OtherDerived >::Type	operator* (const MatrixBase< OtherDerived > &other) const

const ScalarMultipleReturnType	operator* (const Scalar &scalar) const

template<typename OtherDerived>
const SparseSparseProductReturnType< Derived, OtherDerived >::Type	operator* (const SparseMatrixBase< OtherDerived > &other) const

const CwiseUnaryOp< internal::scalar_multiple2_op< Scalar, std::complex< Scalar > >, const Derived >	operator* (const std::complex< Scalar > &scalar) const

template<typename OtherDerived>
const CwiseBinaryOp< internal::scalar_sum_op< Scalar >, const Derived, const OtherDerived >	operator+ (const Eigen::SparseMatrixBase< OtherDerived > &other) const

const CwiseUnaryOp< internal::scalar_opposite_op< typename internal::traits< Derived >::Scalar >, const Derived >	operator- () const

template<typename OtherDerived>
const CwiseBinaryOp< internal::scalar_difference_op< Scalar >, const Derived, const OtherDerived >	operator- (const Eigen::SparseMatrixBase< OtherDerived > &other) const

const CwiseUnaryOp< internal::scalar_quotient1_op< typename internal::traits< Derived >::Scalar >, const Derived >	operator/ (const Scalar &scalar) const

Index	outerSize () const

NonConstRealReturnType	real ()

RealReturnType	real () const

ColsBlockXpr	rightCols (Index n)

ConstColsBlockXpr	rightCols (Index n) const

template<int N>
NColsBlockXpr< N >::Type	rightCols (Index n=N)

template<int N>
ConstNColsBlockXpr< N >::Type	rightCols (Index n=N) const

RowXpr	row (Index i)

ConstRowXpr	row (Index i) const

Index	rows () const

SegmentReturnType	segment (Index start, Index n)

ConstSegmentReturnType	segment (Index start, Index n) const

template<int N>
FixedSegmentReturnType< N >::Type	segment (Index start, Index n=N)

template<int N>
ConstFixedSegmentReturnType< N >::Type	segment (Index start, Index n=N) const

Index	size () const

SegmentReturnType	tail (Index n)

ConstSegmentReturnType	tail (Index n) const

template<int N>
FixedSegmentReturnType< N >::Type	tail (Index n=N)

template<int N>
ConstFixedSegmentReturnType< N >::Type	tail (Index n=N) const

template<int CRows, int CCols>
Block< Derived, CRows, CCols >	topLeftCorner ()

template<int CRows, int CCols>
const Block< const Derived, CRows, CCols >	topLeftCorner () const

Block< Derived >	topLeftCorner (Index cRows, Index cCols)

template<int CRows, int CCols>
Block< Derived, CRows, CCols >	topLeftCorner (Index cRows, Index cCols)

const Block< const Derived >	topLeftCorner (Index cRows, Index cCols) const

template<int CRows, int CCols>
const Block< const Derived, CRows, CCols >	topLeftCorner (Index cRows, Index cCols) const

template<int CRows, int CCols>
Block< Derived, CRows, CCols >	topRightCorner ()

template<int CRows, int CCols>
const Block< const Derived, CRows, CCols >	topRightCorner () const

Block< Derived >	topRightCorner (Index cRows, Index cCols)

template<int CRows, int CCols>
Block< Derived, CRows, CCols >	topRightCorner (Index cRows, Index cCols)

const Block< const Derived >	topRightCorner (Index cRows, Index cCols) const

template<int CRows, int CCols>
const Block< const Derived, CRows, CCols >	topRightCorner (Index cRows, Index cCols) const

RowsBlockXpr	topRows (Index n)

ConstRowsBlockXpr	topRows (Index n) const

template<int N>
NRowsBlockXpr< N >::Type	topRows (Index n=N)

template<int N>
ConstNRowsBlockXpr< N >::Type	topRows (Index n=N) const

SparseSymmetricPermutationProduct< Derived, Upper\|Lower >	twistedBy (const PermutationMatrix< Dynamic, Dynamic, Index > &perm) const

template<typename CustomUnaryOp>
const CwiseUnaryOp< CustomUnaryOp, const Derived >	unaryExpr (const CustomUnaryOp &func=CustomUnaryOp()) const
	Apply a unary operator coefficient-wise.

template<typename CustomViewOp>
const CwiseUnaryView< CustomViewOp, const Derived >	unaryViewExpr (const CustomViewOp &func=CustomViewOp()) const

Member Enumeration Documentation

◆ anonymous enum

template<typename Derived>

anonymous enum

Enumerator
RowsAtCompileTime	The number of rows at compile-time. This is just a copy of the value provided by the Derived type. If a value is not known at compile-time, it is set to the Dynamic constant. See also MatrixBase::rows(), MatrixBase::cols(), ColsAtCompileTime, SizeAtCompileTime
ColsAtCompileTime	The number of columns at compile-time. This is just a copy of the value provided by the Derived type. If a value is not known at compile-time, it is set to the Dynamic constant. See also MatrixBase::rows(), MatrixBase::cols(), RowsAtCompileTime, SizeAtCompileTime
SizeAtCompileTime	This is equal to the number of coefficients, i.e. the number of rows times the number of columns, or to Dynamic if this is not known at compile-time. See also RowsAtCompileTime, ColsAtCompileTime
IsVectorAtCompileTime	This is set to true if either the number of rows or the number of columns is known at compile-time to be equal to 1. Indeed, in that case, we are dealing with a column-vector (if there is only one column) or with a row-vector (if there is only one row).
Flags	This stores expression Flags flags which may or may not be inherited by new expressions constructed from this one. See the list of flags.
CoeffReadCost	This is a rough measure of how expensive it is to read one coefficient from this expression.

Member Function Documentation

◆ binaryExpr()

template<typename Derived>

template<typename CustomBinaryOp, typename OtherDerived>

const CwiseBinaryOp< CustomBinaryOp, const Derived, const OtherDerived > binaryExpr	(	const Eigen::SparseMatrixBase< OtherDerived > &	other,
		const CustomBinaryOp &	func = CustomBinaryOp() ) const

inline

Returns: an expression of a custom coefficient-wise operator func of *this and other

The template parameter CustomBinaryOp is the type of the functor of the custom operator (see class CwiseBinaryOp for an example)

Here is an example illustrating the use of custom functors:

#include <Eigen/Core>
#include <iostream>
using namespace Eigen;
using namespace std;

// define a custom template binary functor
template<typename Scalar> struct MakeComplexOp {
  EIGEN_EMPTY_STRUCT_CTOR(MakeComplexOp)
  typedef complex<Scalar> result_type;
  complex<Scalar> operator()(const Scalar& a, const Scalar& b) const { return complex<Scalar>(a,b); }
};

int main(int, char**)
{
  Matrix4d m1 = Matrix4d::Random(), m2 = Matrix4d::Random();
  cout << m1.binaryExpr(m2, MakeComplexOp<double>()) << endl;
  return 0;
}

Output:

   (0.68,0.271)  (0.823,-0.967) (-0.444,-0.687)   (-0.27,0.998)
 (-0.211,0.435) (-0.605,-0.514)  (0.108,-0.198) (0.0268,-0.563)
 (0.566,-0.717)  (-0.33,-0.726) (-0.0452,-0.74)  (0.904,0.0259)
  (0.597,0.214)   (0.536,0.608)  (0.258,-0.782)   (0.832,0.678)

See also: class CwiseBinaryOp, operator+(), operator-(), cwiseProduct()

◆ block() [1/6]

template<typename Derived>

template<int BlockRows, int BlockCols>

Block< Derived, BlockRows, BlockCols > block	(	Index	startRow,
		Index	startCol )

inline

Returns: a fixed-size expression of a block in *this.

The template parameters BlockRows and BlockCols are the number of rows and columns in the block.

Parameters

startRow	the first row in the block
startCol	the first column in the block

Example:

Matrix4i m = Matrix4i::Random();
cout << "Here is the matrix m:" << endl << m << endl;
cout << "Here is m.block<2,2>(1,1):" << endl << m.block<2,2>(1,1) << endl;
m.block<2,2>(1,1).setZero();
cout << "Now the matrix m is:" << endl << m << endl;

Output:

Here is the matrix m:
 7  9 -5 -3
-2 -6  1  0
 6 -3  0  9
 6  6  3  9
Here is m.block<2,2>(1,1):
-6  1
-3  0
Now the matrix m is:
 7  9 -5 -3
-2  0  0  0
 6  0  0  9
 6  6  3  9

Note: since block is a templated member, the keyword template has to be used if the matrix type is also a template parameter:
m.template block<3,3>(1,1);

Eigen::SparseMatrixBase::block
Block< Derived > block(Index startRow, Index startCol, Index blockRows, Index blockCols)
Definition SparseMatrixBase.h:57

See also: class Block, block(Index,Index,Index,Index)

◆ block() [2/6]

template<typename Derived>

template<int BlockRows, int BlockCols>

const Block< const Derived, BlockRows, BlockCols > block	(	Index	startRow,
		Index	startCol ) const

inline

This is the const version of block<>(Index, Index).

◆ block() [3/6]

template<typename Derived>

Block< Derived > block	(	Index	startRow,
		Index	startCol,
		Index	blockRows,
		Index	blockCols )

inline

Returns: a dynamic-size expression of a block in *this.

Parameters

startRow	the first row in the block
startCol	the first column in the block
blockRows	the number of rows in the block
blockCols	the number of columns in the block

Example:

Matrix4i m = Matrix4i::Random();
cout << "Here is the matrix m:" << endl << m << endl;
cout << "Here is m.block(1, 1, 2, 2):" << endl << m.block(1, 1, 2, 2) << endl;
m.block(1, 1, 2, 2).setZero();
cout << "Now the matrix m is:" << endl << m << endl;

Output:

Here is the matrix m:
 7  9 -5 -3
-2 -6  1  0
 6 -3  0  9
 6  6  3  9
Here is m.block(1, 1, 2, 2):
-6  1
-3  0
Now the matrix m is:
 7  9 -5 -3
-2  0  0  0
 6  0  0  9
 6  6  3  9

Note: Even though the returned expression has dynamic size, in the case when it is applied to a fixed-size matrix, it inherits a fixed maximal size, which means that evaluating it does not cause a dynamic memory allocation.

See also: class Block, block(Index,Index)

◆ block() [4/6]

template<typename Derived>

template<int BlockRows, int BlockCols>

Block< Derived, BlockRows, BlockCols > block	(	Index	startRow,
		Index	startCol,
		Index	blockRows,
		Index	blockCols )

inline

Returns: an expression of a block in *this.

Template Parameters

BlockRows	number of rows in block as specified at compile-time
BlockCols	number of columns in block as specified at compile-time

Parameters

startRow	the first row in the block
startCol	the first column in the block
blockRows	number of rows in block as specified at run-time
blockCols	number of columns in block as specified at run-time

This function is mainly useful for blocks where the number of rows is specified at compile-time and the number of columns is specified at run-time, or vice versa. The compile-time and run-time information should not contradict. In other words, blockRows should equal BlockRows unless BlockRows is Dynamic, and the same for the number of columns.

Example:

Matrix4i m = Matrix4i::Random();
cout << "Here is the matrix m:" << endl << m << endl;
cout << "Here is the block:" << endl << m.block<2, Dynamic>(1, 1, 2, 3) << endl;
m.block<2, Dynamic>(1, 1, 2, 3).setZero();
cout << "Now the matrix m is:" << endl << m << endl;

Output:

Matrix4i m = Matrix4i::Random();
cout << "Here is the matrix m:" << endl << m << endl;
cout << "Here is the block:" << endl << m.block<2, Dynamic>(1, 1, 2, 3) << endl;
m.block<2, Dynamic>(1, 1, 2, 3).setZero();
cout << "Now the matrix m is:" << endl << m << endl;

See also: class Block, block(Index,Index,Index,Index)

◆ block() [5/6]

template<typename Derived>

const Block< const Derived > block	(	Index	startRow,
		Index	startCol,
		Index	blockRows,
		Index	blockCols ) const

inline

This is the const version of block(Index,Index,Index,Index).

◆ block() [6/6]

template<typename Derived>

template<int BlockRows, int BlockCols>

const Block< const Derived, BlockRows, BlockCols > block	(	Index	startRow,
		Index	startCol,
		Index	blockRows,
		Index	blockCols ) const

inline

This is the const version of block<>(Index, Index, Index, Index).

◆ bottomLeftCorner() [1/6]

template<typename Derived>

template<int CRows, int CCols>

Block< Derived, CRows, CCols > bottomLeftCorner ( )

inline

Returns: an expression of a fixed-size bottom-left corner of *this.

The template parameters CRows and CCols are the number of rows and columns in the corner.

Example:

Matrix4i m = Matrix4i::Random();
cout << "Here is the matrix m:" << endl << m << endl;
cout << "Here is m.bottomLeftCorner<2,2>():" << endl;
cout << m.bottomLeftCorner<2,2>() << endl;
m.bottomLeftCorner<2,2>().setZero();
cout << "Now the matrix m is:" << endl << m << endl;

Output:

Here is the matrix m:
 7  9 -5 -3
-2 -6  1  0
 6 -3  0  9
 6  6  3  9
Here is m.bottomLeftCorner<2,2>():
 6 -3
 6  6
Now the matrix m is:
 7  9 -5 -3
-2 -6  1  0
 0  0  0  9
 0  0  3  9

See also: class Block, block(Index,Index,Index,Index)

◆ bottomLeftCorner() [2/6]

template<typename Derived>

template<int CRows, int CCols>

const Block< const Derived, CRows, CCols > bottomLeftCorner ( ) const

inline

This is the const version of bottomLeftCorner<int, int>().

◆ bottomLeftCorner() [3/6]

template<typename Derived>

Block< Derived > bottomLeftCorner	(	Index	cRows,
		Index	cCols )

inline

Returns: a dynamic-size expression of a bottom-left corner of *this.

Parameters

cRows	the number of rows in the corner
cCols	the number of columns in the corner

Example:

Matrix4i m = Matrix4i::Random();
cout << "Here is the matrix m:" << endl << m << endl;
cout << "Here is m.bottomLeftCorner(2, 2):" << endl;
cout << m.bottomLeftCorner(2, 2) << endl;
m.bottomLeftCorner(2, 2).setZero();
cout << "Now the matrix m is:" << endl << m << endl;

Output:

Here is the matrix m:
 7  9 -5 -3
-2 -6  1  0
 6 -3  0  9
 6  6  3  9
Here is m.bottomLeftCorner(2, 2):
 6 -3
 6  6
Now the matrix m is:
 7  9 -5 -3
-2 -6  1  0
 0  0  0  9
 0  0  3  9

See also: class Block, block(Index,Index,Index,Index)

◆ bottomLeftCorner() [4/6]

template<typename Derived>

template<int CRows, int CCols>

Block< Derived, CRows, CCols > bottomLeftCorner	(	Index	cRows,
		Index	cCols )

inline

Returns: an expression of a bottom-left corner of *this.

Template Parameters

CRows	number of rows in corner as specified at compile-time
CCols	number of columns in corner as specified at compile-time

Parameters

cRows	number of rows in corner as specified at run-time
cCols	number of columns in corner as specified at run-time

This function is mainly useful for corners where the number of rows is specified at compile-time and the number of columns is specified at run-time, or vice versa. The compile-time and run-time information should not contradict. In other words, cRows should equal CRows unless CRows is Dynamic, and the same for the number of columns.

Example:

Matrix4i m = Matrix4i::Random();
cout << "Here is the matrix m:" << endl << m << endl;
cout << "Here is m.bottomLeftCorner<2,Dynamic>(2,2):" << endl;
cout << m.bottomLeftCorner<2,Dynamic>(2,2) << endl;
m.bottomLeftCorner<2,Dynamic>(2,2).setZero();
cout << "Now the matrix m is:" << endl << m << endl;

Output:

Here is the matrix m:
 7  9 -5 -3
-2 -6  1  0
 6 -3  0  9
 6  6  3  9
Here is m.bottomLeftCorner<2,Dynamic>(2,2):
 6 -3
 6  6
Now the matrix m is:
 7  9 -5 -3
-2 -6  1  0
 0  0  0  9
 0  0  3  9

See also: class Block

◆ bottomLeftCorner() [5/6]

template<typename Derived>

const Block< const Derived > bottomLeftCorner	(	Index	cRows,
		Index	cCols ) const

inline

This is the const version of bottomLeftCorner(Index, Index).

◆ bottomLeftCorner() [6/6]

template<typename Derived>

template<int CRows, int CCols>

const Block< const Derived, CRows, CCols > bottomLeftCorner	(	Index	cRows,
		Index	cCols ) const

inline

This is the const version of bottomLeftCorner<int, int>(Index, Index).

◆ bottomRightCorner() [1/6]

template<typename Derived>

template<int CRows, int CCols>

Block< Derived, CRows, CCols > bottomRightCorner ( )

inline

Returns: an expression of a fixed-size bottom-right corner of *this.

The template parameters CRows and CCols are the number of rows and columns in the corner.

Example:

Matrix4i m = Matrix4i::Random();
cout << "Here is the matrix m:" << endl << m << endl;
cout << "Here is m.bottomRightCorner<2,2>():" << endl;
cout << m.bottomRightCorner<2,2>() << endl;
m.bottomRightCorner<2,2>().setZero();
cout << "Now the matrix m is:" << endl << m << endl;

Output:

Here is the matrix m:
 7  9 -5 -3
-2 -6  1  0
 6 -3  0  9
 6  6  3  9
Here is m.bottomRightCorner<2,2>():
0 9
3 9
Now the matrix m is:
 7  9 -5 -3
-2 -6  1  0
 6 -3  0  0
 6  6  0  0

See also: class Block, block(Index,Index,Index,Index)

◆ bottomRightCorner() [2/6]

template<typename Derived>

template<int CRows, int CCols>

const Block< const Derived, CRows, CCols > bottomRightCorner ( ) const

inline

This is the const version of bottomRightCorner<int, int>().

◆ bottomRightCorner() [3/6]

template<typename Derived>

Block< Derived > bottomRightCorner	(	Index	cRows,
		Index	cCols )

inline

Returns: a dynamic-size expression of a bottom-right corner of *this.

Parameters

cRows	the number of rows in the corner
cCols	the number of columns in the corner

Example:

Matrix4i m = Matrix4i::Random();
cout << "Here is the matrix m:" << endl << m << endl;
cout << "Here is m.bottomRightCorner(2, 2):" << endl;
cout << m.bottomRightCorner(2, 2) << endl;
m.bottomRightCorner(2, 2).setZero();
cout << "Now the matrix m is:" << endl << m << endl;

Output:

Here is the matrix m:
 7  9 -5 -3
-2 -6  1  0
 6 -3  0  9
 6  6  3  9
Here is m.bottomRightCorner(2, 2):
0 9
3 9
Now the matrix m is:
 7  9 -5 -3
-2 -6  1  0
 6 -3  0  0
 6  6  0  0

See also: class Block, block(Index,Index,Index,Index)

◆ bottomRightCorner() [4/6]

template<typename Derived>

template<int CRows, int CCols>

Block< Derived, CRows, CCols > bottomRightCorner	(	Index	cRows,
		Index	cCols )

inline

Returns: an expression of a bottom-right corner of *this.

Template Parameters

CRows	number of rows in corner as specified at compile-time
CCols	number of columns in corner as specified at compile-time

Parameters

cRows	number of rows in corner as specified at run-time
cCols	number of columns in corner as specified at run-time

Example:

Matrix4i m = Matrix4i::Random();
cout << "Here is the matrix m:" << endl << m << endl;
cout << "Here is m.bottomRightCorner<2,Dynamic>(2,2):" << endl;
cout << m.bottomRightCorner<2,Dynamic>(2,2) << endl;
m.bottomRightCorner<2,Dynamic>(2,2).setZero();
cout << "Now the matrix m is:" << endl << m << endl;

Output:

Here is the matrix m:
 7  9 -5 -3
-2 -6  1  0
 6 -3  0  9
 6  6  3  9
Here is m.bottomRightCorner<2,Dynamic>(2,2):
0 9
3 9
Now the matrix m is:
 7  9 -5 -3
-2 -6  1  0
 6 -3  0  0
 6  6  0  0

See also: class Block

◆ bottomRightCorner() [5/6]

template<typename Derived>

const Block< const Derived > bottomRightCorner	(	Index	cRows,
		Index	cCols ) const

inline

This is the const version of bottomRightCorner(Index, Index).

◆ bottomRightCorner() [6/6]

template<typename Derived>

template<int CRows, int CCols>

const Block< const Derived, CRows, CCols > bottomRightCorner	(	Index	cRows,
		Index	cCols ) const

inline

This is the const version of bottomRightCorner<int, int>(Index, Index).

◆ bottomRows() [1/4]

template<typename Derived>

RowsBlockXpr bottomRows ( Index n )

inline

Returns: a block consisting of the bottom rows of *this.

Parameters

n	the number of rows in the block

Example:

Array44i a = Array44i::Random();
cout << "Here is the array a:" << endl << a << endl;
cout << "Here is a.bottomRows(2):" << endl;
cout << a.bottomRows(2) << endl;
a.bottomRows(2).setZero();
cout << "Now the array a is:" << endl << a << endl;

Output:

Here is the array a:
 7  9 -5 -3
-2 -6  1  0
 6 -3  0  9
 6  6  3  9
Here is a.bottomRows(2):
 6 -3  0  9
 6  6  3  9
Now the array a is:
 7  9 -5 -3
-2 -6  1  0
 0  0  0  0
 0  0  0  0

See also: class Block, block(Index,Index,Index,Index)

◆ bottomRows() [2/4]

template<typename Derived>

ConstRowsBlockXpr bottomRows ( Index n ) const

inline

This is the const version of bottomRows(Index).

◆ bottomRows() [3/4]

template<typename Derived>

template<int N>

NRowsBlockXpr< N >::Type bottomRows ( Index n = N )

inline

Returns: a block consisting of the bottom rows of *this.

Template Parameters

N	the number of rows in the block as specified at compile-time

Parameters

n	the number of rows in the block as specified at run-time

The compile-time and run-time information should not contradict. In other words, n should equal N unless N is Dynamic.

Example:

Array44i a = Array44i::Random();
cout << "Here is the array a:" << endl << a << endl;
cout << "Here is a.bottomRows<2>():" << endl;
cout << a.bottomRows<2>() << endl;
a.bottomRows<2>().setZero();
cout << "Now the array a is:" << endl << a << endl;

Output:

Here is the array a:
 7  9 -5 -3
-2 -6  1  0
 6 -3  0  9
 6  6  3  9
Here is a.bottomRows<2>():
 6 -3  0  9
 6  6  3  9
Now the array a is:
 7  9 -5 -3
-2 -6  1  0
 0  0  0  0
 0  0  0  0

See also: class Block, block(Index,Index,Index,Index)

◆ bottomRows() [4/4]

template<typename Derived>

template<int N>

ConstNRowsBlockXpr< N >::Type bottomRows ( Index n = N ) const

inline

This is the const version of bottomRows<int>().

◆ cast()

template<typename Derived>

template<typename NewType>

internal::cast_return_type< Derived, constCwiseUnaryOp< internal::scalar_cast_op< typenameinternal::traits< Derived >::Scalar, NewType >, constDerived > >::type cast ( ) const

inline

Returns: an expression of *this with the Scalar type casted to NewScalar.

The template parameter NewScalar is the type we are casting the scalars to.

See also: class CwiseUnaryOp

◆ col() [1/2]

template<typename Derived>

ColXpr col ( Index i )

inline

Returns: an expression of the i-th column of *this. Note that the numbering starts at 0.

Example:

Matrix3d m = Matrix3d::Identity();
m.col(1) = Vector3d(4,5,6);
cout << m << endl;

Output:

1 4 0
0 5 0
0 6 1

See also: row(), class Block

◆ col() [2/2]

template<typename Derived>

ConstColXpr col ( Index i ) const

inline

This is the const version of col().

◆ cols()

template<typename Derived>

Index cols ( ) const

inline

Returns: the number of columns.

See also: rows()

◆ conjugate()

template<typename Derived>

ConjugateReturnType conjugate ( ) const

inline

Returns: an expression of the complex conjugate of *this.

See also: adjoint()

◆ cwiseAbs()

template<typename Derived>

const CwiseUnaryOp< internal::scalar_abs_op< Scalar >, const Derived > cwiseAbs ( ) const

inline

Returns: an expression of the coefficient-wise absolute value of *this

Example:

MatrixXd m(2,3);
m << 2, -4, 6,
     -5, 1, 0;
cout << m.cwiseAbs() << endl;

Output:

2 4 6
5 1 0

See also: cwiseAbs2()

◆ cwiseAbs2()

template<typename Derived>

const CwiseUnaryOp< internal::scalar_abs2_op< Scalar >, const Derived > cwiseAbs2 ( ) const

inline

Returns: an expression of the coefficient-wise squared absolute value of *this

Example:

MatrixXd m(2,3);
m << 2, -4, 6,
     -5, 1, 0;
cout << m.cwiseAbs2() << endl;

Output:

 4 16 36
25  1  0

See also: cwiseAbs()

◆ cwiseEqual() [1/2]

template<typename Derived>

template<typename OtherDerived>

const CwiseBinaryOp< std::equal_to< Scalar >, const Derived, const OtherDerived > cwiseEqual ( const Eigen::SparseMatrixBase< OtherDerived > & other ) const

inline

Returns: an expression of the coefficient-wise == operator of *this and other

Warning: this performs an exact comparison, which is generally a bad idea with floating-point types. In order to check for equality between two vectors or matrices with floating-point coefficients, it is generally a far better idea to use a fuzzy comparison as provided by isApprox() and isMuchSmallerThan().

Example:

MatrixXi m(2,2);
m << 1, 0,
     1, 1;
cout << "Comparing m with identity matrix:" << endl;
cout << m.cwiseEqual(MatrixXi::Identity(2,2)) << endl;
int count = m.cwiseEqual(MatrixXi::Identity(2,2)).count();
cout << "Number of coefficients that are equal: " << count << endl;

Output:

Comparing m with identity matrix:
1 1
0 1
Number of coefficients that are equal: 3

See also: cwiseNotEqual(), isApprox(), isMuchSmallerThan()

◆ cwiseEqual() [2/2]

template<typename Derived>

const CwiseScalarEqualReturnType cwiseEqual ( const Scalar & s ) const

inline

Returns: an expression of the coefficient-wise == operator of *this and a scalar s

Warning: this performs an exact comparison, which is generally a bad idea with floating-point types. In order to check for equality between two vectors or matrices with floating-point coefficients, it is generally a far better idea to use a fuzzy comparison as provided by isApprox() and isMuchSmallerThan().

See also: cwiseEqual(const MatrixBase<OtherDerived> &) const

◆ cwiseInverse()

template<typename Derived>

const CwiseUnaryOp< internal::scalar_inverse_op< Scalar >, const Derived > cwiseInverse ( ) const

inline

Returns: an expression of the coefficient-wise inverse of *this.

Example:

MatrixXd m(2,3);
m << 2, 0.5, 1,
     3, 0.25, 1;
cout << m.cwiseInverse() << endl;

Output:

  0.5     2     1
0.333     4     1

See also: cwiseProduct()

◆ cwiseMax() [1/2]

template<typename Derived>

template<typename OtherDerived>

const CwiseBinaryOp< internal::scalar_max_op< Scalar >, const Derived, const OtherDerived > cwiseMax ( const Eigen::SparseMatrixBase< OtherDerived > & other ) const

inline

Returns: an expression of the coefficient-wise max of *this and other

Example:

Vector3d v(2,3,4), w(4,2,3);

cout << v.cwiseMax(w) << endl;

Output:

4
3
4

See also: class CwiseBinaryOp, min()

◆ cwiseMax() [2/2]

template<typename Derived>

const CwiseBinaryOp< internal::scalar_max_op< Scalar >, const Derived, const ConstantReturnType > cwiseMax ( const Scalar & other ) const

inline

Returns: an expression of the coefficient-wise max of *this and scalar other

See also: class CwiseBinaryOp, min()

◆ cwiseMin() [1/2]

template<typename Derived>

template<typename OtherDerived>

const CwiseBinaryOp< internal::scalar_min_op< Scalar >, const Derived, const OtherDerived > cwiseMin ( const Eigen::SparseMatrixBase< OtherDerived > & other ) const

inline

Returns: an expression of the coefficient-wise min of *this and other

Example:

Vector3d v(2,3,4), w(4,2,3);

cout << v.cwiseMin(w) << endl;

Output:

2
2
3

See also: class CwiseBinaryOp, max()

◆ cwiseMin() [2/2]

template<typename Derived>

const CwiseBinaryOp< internal::scalar_min_op< Scalar >, const Derived, const ConstantReturnType > cwiseMin ( const Scalar & other ) const

inline

Returns: an expression of the coefficient-wise min of *this and scalar other

See also: class CwiseBinaryOp, min()

◆ cwiseNotEqual()

template<typename Derived>

template<typename OtherDerived>

const CwiseBinaryOp< std::not_equal_to< Scalar >, const Derived, const OtherDerived > cwiseNotEqual ( const Eigen::SparseMatrixBase< OtherDerived > & other ) const

inline

Returns: an expression of the coefficient-wise != operator of *this and other

Warning: this performs an exact comparison, which is generally a bad idea with floating-point types. In order to check for equality between two vectors or matrices with floating-point coefficients, it is generally a far better idea to use a fuzzy comparison as provided by isApprox() and isMuchSmallerThan().

Example:

MatrixXi m(2,2);
m << 1, 0,
     1, 1;
cout << "Comparing m with identity matrix:" << endl;
cout << m.cwiseNotEqual(MatrixXi::Identity(2,2)) << endl;
int count = m.cwiseNotEqual(MatrixXi::Identity(2,2)).count();
cout << "Number of coefficients that are not equal: " << count << endl;

Output:

Comparing m with identity matrix:
0 0
1 0
Number of coefficients that are not equal: 1

See also: cwiseEqual(), isApprox(), isMuchSmallerThan()

◆ cwiseProduct()

template<typename Derived>

template<typename OtherDerived>

const CwiseBinaryOp< internal::scalar_product_op< typename Derived ::Scalar, typename OtherDerived ::Scalar >, const Derived, const OtherDerived > cwiseProduct ( const Eigen::SparseMatrixBase< OtherDerived > & other ) const

inline

Returns: an expression of the Schur product (coefficient wise product) of *this and other

Example:

Matrix3i a = Matrix3i::Random(), b = Matrix3i::Random();
Matrix3i c = a.cwiseProduct(b);
cout << "a:\n" << a << "\nb:\n" << b << "\nc:\n" << c << endl;


Output:

See also: class CwiseBinaryOp, cwiseAbs2

◆ cwiseQuotient()

template<typename Derived>

template<typename OtherDerived>

const CwiseBinaryOp< internal::scalar_quotient_op< Scalar >, const Derived, const OtherDerived > cwiseQuotient ( const Eigen::SparseMatrixBase< OtherDerived > & other ) const

inline

Returns: an expression of the coefficient-wise quotient of *this and other

Example:

Vector3d v(2,3,4), w(4,2,3);

cout << v.cwiseQuotient(w) << endl;

Output:

 0.5
 1.5
1.33

See also: class CwiseBinaryOp, cwiseProduct(), cwiseInverse()

◆ cwiseSqrt()

template<typename Derived>

const CwiseUnaryOp< internal::scalar_sqrt_op< Scalar >, const Derived > cwiseSqrt ( ) const

inline

Returns: an expression of the coefficient-wise square root of *this.

Example:

Vector3d v(1,2,4);

cout << v.cwiseSqrt() << endl;

Output:

   1
1.41
   2

See also: cwisePow(), cwiseSquare()

◆ derived() [1/2]

template<typename Derived>

Derived & derived ( )

inlineinherited

Returns: a reference to the derived object

◆ derived() [2/2]

template<typename Derived>

const Derived & derived ( ) const

inlineinherited

Returns: a const reference to the derived object

◆ eval()

template<typename Derived>

const internal::eval< Derived >::type eval ( ) const

inline

Returns: the matrix or vector obtained by evaluating this expression.

Notice that in the case of a plain matrix or vector (not an expression) this function just returns a const reference, in order to avoid a useless copy.

◆ head() [1/4]

template<typename Derived>

SegmentReturnType head ( Index n )

inline

Returns: a dynamic-size expression of the first coefficients of *this.

This is only for vectors (either row-vectors or column-vectors), i.e. matrices which are known at compile-time to have either one row or one column.

Parameters

n	the number of coefficients in the segment

Example:

RowVector4i v = RowVector4i::Random();
cout << "Here is the vector v:" << endl << v << endl;
cout << "Here is v.head(2):" << endl << v.head(2) << endl;
v.head(2).setZero();
cout << "Now the vector v is:" << endl << v << endl;

Output:

Here is the vector v:
 7 -2  6  6
Here is v.head(2):
 7 -2
Now the vector v is:
0 0 6 6

Note: Even though the returned expression has dynamic size, in the case when it is applied to a fixed-size vector, it inherits a fixed maximal size, which means that evaluating it does not cause a dynamic memory allocation.

See also: class Block, block(Index,Index)

◆ head() [2/4]

template<typename Derived>

ConstSegmentReturnType head ( Index n ) const

inline

This is the const version of head(Index).

◆ head() [3/4]

template<typename Derived>

template<int N>

FixedSegmentReturnType< N >::Type head ( Index n = N )

inline

Returns: a fixed-size expression of the first coefficients of *this.

This is only for vectors (either row-vectors or column-vectors), i.e. matrices which are known at compile-time to have either one row or one column.

Template Parameters

N	the number of coefficients in the segment as specified at compile-time

Parameters

n	the number of coefficients in the segment as specified at run-time

The compile-time and run-time information should not contradict. In other words, n should equal N unless N is Dynamic.

Example:

RowVector4i v = RowVector4i::Random();
cout << "Here is the vector v:" << endl << v << endl;
cout << "Here is v.head(2):" << endl << v.head<2>() << endl;
v.head<2>().setZero();
cout << "Now the vector v is:" << endl << v << endl;

Output:

Here is the vector v:
 7 -2  6  6
Here is v.head(2):
 7 -2
Now the vector v is:
0 0 6 6

See also: class Block

◆ head() [4/4]

template<typename Derived>

template<int N>

ConstFixedSegmentReturnType< N >::Type head ( Index n = N ) const

inline

This is the const version of head<int>().

◆ imag() [1/2]

template<typename Derived>

NonConstImagReturnType imag ( )

inline

Returns: a non const expression of the imaginary part of *this.

See also: real()

◆ imag() [2/2]

template<typename Derived>

const ImagReturnType imag ( ) const

inline

Returns: an read-only expression of the imaginary part of *this.

See also: real()

◆ innerSize()

template<typename Derived>

Index innerSize ( ) const

inline

Returns: the size of the inner dimension according to the storage order, i.e., the number of rows for a columns major matrix, and the number of cols otherwise

◆ innerVector() [1/2]

template<typename Derived>

SparseMatrixBase< Derived >::InnerVectorReturnType innerVector ( Index outer )

Returns: the outer -th column (resp. row) of the matrix *this if *this is col-major (resp. row-major).

References EigenBase< Derived >::derived().

◆ innerVector() [2/2]

template<typename Derived>

const SparseMatrixBase< Derived >::ConstInnerVectorReturnType innerVector ( Index outer ) const

Returns: the outer -th column (resp. row) of the matrix *this if *this is col-major (resp. row-major). Read-only.

References EigenBase< Derived >::derived().

◆ innerVectors() [1/2]

template<typename Derived>

SparseMatrixBase< Derived >::InnerVectorsReturnType innerVectors	(	Index	outerStart,
		Index	outerSize )

Returns: the outer -th column (resp. row) of the matrix *this if *this is col-major (resp. row-major).

References cols(), EigenBase< Derived >::derived(), outerSize(), and rows().

◆ innerVectors() [2/2]

template<typename Derived>

const SparseMatrixBase< Derived >::ConstInnerVectorsReturnType innerVectors	(	Index	outerStart,
		Index	outerSize ) const

Returns: the outer -th column (resp. row) of the matrix *this if *this is col-major (resp. row-major). Read-only.

References EigenBase< Derived >::derived(), and outerSize().

◆ isVector()

template<typename Derived>

bool isVector ( ) const

inline

Returns: true if either the number of rows or the number of columns is equal to 1. In other words, this function returns
rows()==1 || cols()==1

Eigen::SparseMatrixBase::cols
Index cols() const
Definition SparseMatrixBase.h:162

Eigen::SparseMatrixBase::rows
Index rows() const
Definition SparseMatrixBase.h:160

See also: rows(), cols(), IsVectorAtCompileTime.

◆ leftCols() [1/4]

template<typename Derived>

ColsBlockXpr leftCols ( Index n )

inline

Returns: a block consisting of the left columns of *this.

Parameters

n	the number of columns in the block

Example:

Array44i a = Array44i::Random();
cout << "Here is the array a:" << endl << a << endl;
cout << "Here is a.leftCols(2):" << endl;
cout << a.leftCols(2) << endl;
a.leftCols(2).setZero();
cout << "Now the array a is:" << endl << a << endl;

Output:

Here is the array a:
 7  9 -5 -3
-2 -6  1  0
 6 -3  0  9
 6  6  3  9
Here is a.leftCols(2):
 7  9
-2 -6
 6 -3
 6  6
Now the array a is:
 0  0 -5 -3
 0  0  1  0
 0  0  0  9
 0  0  3  9

See also: class Block, block(Index,Index,Index,Index)

◆ leftCols() [2/4]

template<typename Derived>

ConstColsBlockXpr leftCols ( Index n ) const

inline

This is the const version of leftCols(Index).

◆ leftCols() [3/4]

template<typename Derived>

template<int N>

NColsBlockXpr< N >::Type leftCols ( Index n = N )

inline

Returns: a block consisting of the left columns of *this.

Template Parameters

N	the number of columns in the block as specified at compile-time

Parameters

n	the number of columns in the block as specified at run-time

The compile-time and run-time information should not contradict. In other words, n should equal N unless N is Dynamic.

Example:

Array44i a = Array44i::Random();
cout << "Here is the array a:" << endl << a << endl;
cout << "Here is a.leftCols<2>():" << endl;
cout << a.leftCols<2>() << endl;
a.leftCols<2>().setZero();
cout << "Now the array a is:" << endl << a << endl;

Output:

Here is the array a:
 7  9 -5 -3
-2 -6  1  0
 6 -3  0  9
 6  6  3  9
Here is a.leftCols<2>():
 7  9
-2 -6
 6 -3
 6  6
Now the array a is:
 0  0 -5 -3
 0  0  1  0
 0  0  0  9
 0  0  3  9

See also: class Block, block(Index,Index,Index,Index)

◆ leftCols() [4/4]

template<typename Derived>

template<int N>

ConstNColsBlockXpr< N >::Type leftCols ( Index n = N ) const

inline

This is the const version of leftCols<int>().

◆ middleCols() [1/4]

template<typename Derived>

template<int N>

NColsBlockXpr< N >::Type middleCols	(	Index	startCol,
		Index	n = N )

inline

Returns: a block consisting of a range of columns of *this.

Template Parameters

N	the number of columns in the block as specified at compile-time

Parameters

startCol	the index of the first column in the block
n	the number of columns in the block as specified at run-time

The compile-time and run-time information should not contradict. In other words, n should equal N unless N is Dynamic.

Example:

#include <Eigen/Core>
#include <iostream>

using namespace Eigen;
using namespace std;

int main(void)
{
    int const N = 5;
    MatrixXi A(N,N);
    A.setRandom();
    cout << "A =\n" << A << '\n' << endl;
    cout << "A(:,1..3) =\n" << A.middleCols<3>(1) << endl;
    return 0;
}

Output:

A =
  7  -6   0   9 -10
 -2  -3   3   3  -5
  6   6  -3   5  -8
  6  -5   0  -8   6
  9   1   9   2  -7

A(:,1..3) =
-6  0  9
-3  3  3
 6 -3  5
-5  0 -8
 1  9  2

See also: class Block, block(Index,Index,Index,Index)

◆ middleCols() [2/4]

template<typename Derived>

template<int N>

ConstNColsBlockXpr< N >::Type middleCols	(	Index	startCol,
		Index	n = N ) const

inline

This is the const version of middleCols<int>().

◆ middleCols() [3/4]

template<typename Derived>

ColsBlockXpr middleCols	(	Index	startCol,
		Index	numCols )

inline

Returns: a block consisting of a range of columns of *this.

Parameters

startCol	the index of the first column in the block
numCols	the number of columns in the block

Example:

#include <Eigen/Core>
#include <iostream>

using namespace Eigen;
using namespace std;

int main(void)
{
    int const N = 5;
    MatrixXi A(N,N);
    A.setRandom();
    cout << "A =\n" << A << '\n' << endl;
    cout << "A(1..3,:) =\n" << A.middleCols(1,3) << endl;
    return 0;
}

Output:

A =
  7  -6   0   9 -10
 -2  -3   3   3  -5
  6   6  -3   5  -8
  6  -5   0  -8   6
  9   1   9   2  -7

A(1..3,:) =
-6  0  9
-3  3  3
 6 -3  5
-5  0 -8
 1  9  2

See also: class Block, block(Index,Index,Index,Index)

◆ middleCols() [4/4]

template<typename Derived>

ConstColsBlockXpr middleCols	(	Index	startCol,
		Index	numCols ) const

inline

This is the const version of middleCols(Index,Index).

◆ middleRows() [1/4]

template<typename Derived>

RowsBlockXpr middleRows	(	Index	startRow,
		Index	n )

inline

Returns: a block consisting of a range of rows of *this.

Parameters

startRow	the index of the first row in the block
n	the number of rows in the block

Example:

#include <Eigen/Core>
#include <iostream>

using namespace Eigen;
using namespace std;

int main(void)
{
    int const N = 5;
    MatrixXi A(N,N);
    A.setRandom();
    cout << "A =\n" << A << '\n' << endl;
    cout << "A(2..3,:) =\n" << A.middleRows(2,2) << endl;
    return 0;
}

Output:

A =
  7  -6   0   9 -10
 -2  -3   3   3  -5
  6   6  -3   5  -8
  6  -5   0  -8   6
  9   1   9   2  -7

A(2..3,:) =
 6  6 -3  5 -8
 6 -5  0 -8  6

See also: class Block, block(Index,Index,Index,Index)

◆ middleRows() [2/4]

template<typename Derived>

ConstRowsBlockXpr middleRows	(	Index	startRow,
		Index	n ) const

inline

This is the const version of middleRows(Index,Index).

◆ middleRows() [3/4]

template<typename Derived>

template<int N>

NRowsBlockXpr< N >::Type middleRows	(	Index	startRow,
		Index	n = N )

inline

Returns: a block consisting of a range of rows of *this.

Template Parameters

N	the number of rows in the block as specified at compile-time

Parameters

startRow	the index of the first row in the block
n	the number of rows in the block as specified at run-time

The compile-time and run-time information should not contradict. In other words, n should equal N unless N is Dynamic.

Example:

#include <Eigen/Core>
#include <iostream>

using namespace Eigen;
using namespace std;

int main(void)
{
    int const N = 5;
    MatrixXi A(N,N);
    A.setRandom();
    cout << "A =\n" << A << '\n' << endl;
    cout << "A(1..3,:) =\n" << A.middleRows<3>(1) << endl;
    return 0;
}

Output:

A =
  7  -6   0   9 -10
 -2  -3   3   3  -5
  6   6  -3   5  -8
  6  -5   0  -8   6
  9   1   9   2  -7

A(1..3,:) =
-2 -3  3  3 -5
 6  6 -3  5 -8
 6 -5  0 -8  6

See also: class Block, block(Index,Index,Index,Index)

◆ middleRows() [4/4]

template<typename Derived>

template<int N>

ConstNRowsBlockXpr< N >::Type middleRows	(	Index	startRow,
		Index	n = N ) const

inline

This is the const version of middleRows<int>().

◆ nonZeros()

template<typename Derived>

Index nonZeros ( ) const

inline

Returns: the number of nonzero coefficients which is in practice the number of stored coefficients.

◆ operator*() [1/4]

template<typename Derived>

template<typename OtherDerived>

const SparseDenseProductReturnType< Derived, OtherDerived >::Type operator* ( const MatrixBase< OtherDerived > & other ) const

inline

sparse * dense (returns a dense object unless it is an outer product)

◆ operator*() [2/4]

template<typename Derived>

const ScalarMultipleReturnType operator* ( const Scalar & scalar ) const

inline

Returns: an expression of *this scaled by the scalar factor scalar

◆ operator*() [3/4]

template<typename Derived>

template<typename OtherDerived>

const SparseSparseProductReturnType< Derived, OtherDerived >::Type operator* ( const SparseMatrixBase< OtherDerived > & other ) const

inline

Returns: an expression of the product of two sparse matrices. By default a conservative product preserving the symbolic non zeros is performed. The automatic pruning of the small values can be achieved by calling the pruned() function in which case a totally different product algorithm is employed:
C = (A*B).pruned(); // supress numerical zeros (exact)

C = (A*B).pruned(ref);

C = (A*B).pruned(ref,epsilon);

where ref is a meaningful non zero reference value.

References EigenBase< Derived >::derived().

◆ operator*() [4/4]

template<typename Derived>

const CwiseUnaryOp< internal::scalar_multiple2_op< Scalar, std::complex< Scalar > >, const Derived > operator* ( const std::complex< Scalar > & scalar ) const

inline

Overloaded for efficient real matrix times complex scalar value

◆ operator+()

template<typename Derived>

template<typename OtherDerived>

const CwiseBinaryOp< internal::scalar_sum_op< Scalar >, const Derived, const OtherDerived > operator+ ( const Eigen::SparseMatrixBase< OtherDerived > & other ) const

Returns: an expression of the sum of *this and other

Note: If you want to add a given scalar to all coefficients, see Cwise::operator+().

See also: class CwiseBinaryOp, operator+=()

◆ operator-() [1/2]

template<typename Derived>

const CwiseUnaryOp< internal::scalar_opposite_op< typename internal::traits< Derived >::Scalar >, const Derived > operator- ( ) const

inline

Returns: an expression of the opposite of *this

◆ operator-() [2/2]

template<typename Derived>

template<typename OtherDerived>

const CwiseBinaryOp< internal::scalar_difference_op< Scalar >, const Derived, const OtherDerived > operator- ( const Eigen::SparseMatrixBase< OtherDerived > & other ) const

Returns: an expression of the difference of *this and other

Note: If you want to substract a given scalar from all coefficients, see Cwise::operator-().

See also: class CwiseBinaryOp, operator-=()

◆ operator/()

template<typename Derived>

const CwiseUnaryOp< internal::scalar_quotient1_op< typename internal::traits< Derived >::Scalar >, const Derived > operator/ ( const Scalar & scalar ) const

inline

Returns: an expression of *this divided by the scalar value scalar

◆ outerSize()

template<typename Derived>

Index outerSize ( ) const

inline

Returns: the size of the storage major dimension, i.e., the number of columns for a columns major matrix, and the number of rows otherwise

Referenced by innerVectors(), and innerVectors().

◆ real() [1/2]

template<typename Derived>

NonConstRealReturnType real ( )

inline

Returns: a non const expression of the real part of *this.

See also: imag()

◆ real() [2/2]

template<typename Derived>

RealReturnType real ( ) const

inline

Returns: a read-only expression of the real part of *this.

See also: imag()

◆ rightCols() [1/4]

template<typename Derived>

ColsBlockXpr rightCols ( Index n )

inline

Returns: a block consisting of the right columns of *this.

Parameters

n	the number of columns in the block

Example:

Array44i a = Array44i::Random();
cout << "Here is the array a:" << endl << a << endl;
cout << "Here is a.rightCols(2):" << endl;
cout << a.rightCols(2) << endl;
a.rightCols(2).setZero();
cout << "Now the array a is:" << endl << a << endl;

Output:

Here is the array a:
 7  9 -5 -3
-2 -6  1  0
 6 -3  0  9
 6  6  3  9
Here is a.rightCols(2):
-5 -3
 1  0
 0  9
 3  9
Now the array a is:
 7  9  0  0
-2 -6  0  0
 6 -3  0  0
 6  6  0  0

See also: class Block, block(Index,Index,Index,Index)

◆ rightCols() [2/4]

template<typename Derived>

ConstColsBlockXpr rightCols ( Index n ) const

inline

This is the const version of rightCols(Index).

◆ rightCols() [3/4]

template<typename Derived>

template<int N>

NColsBlockXpr< N >::Type rightCols ( Index n = N )

inline

Returns: a block consisting of the right columns of *this.

Template Parameters

N	the number of columns in the block as specified at compile-time

Parameters

n	the number of columns in the block as specified at run-time

The compile-time and run-time information should not contradict. In other words, n should equal N unless N is Dynamic.

Example:

Array44i a = Array44i::Random();
cout << "Here is the array a:" << endl << a << endl;
cout << "Here is a.rightCols<2>():" << endl;
cout << a.rightCols<2>() << endl;
a.rightCols<2>().setZero();
cout << "Now the array a is:" << endl << a << endl;

Output:

Here is the array a:
 7  9 -5 -3
-2 -6  1  0
 6 -3  0  9
 6  6  3  9
Here is a.rightCols<2>():
-5 -3
 1  0
 0  9
 3  9
Now the array a is:
 7  9  0  0
-2 -6  0  0
 6 -3  0  0
 6  6  0  0

See also: class Block, block(Index,Index,Index,Index)

◆ rightCols() [4/4]

template<typename Derived>

template<int N>

ConstNColsBlockXpr< N >::Type rightCols ( Index n = N ) const

inline

This is the const version of rightCols<int>().

◆ row() [1/2]

template<typename Derived>

RowXpr row ( Index i )

inline

Returns: an expression of the i-th row of *this. Note that the numbering starts at 0.

Example:

Matrix3d m = Matrix3d::Identity();
m.row(1) = Vector3d(4,5,6);
cout << m << endl;

Output:

1 0 0
4 5 6
0 0 1

See also: col(), class Block

◆ row() [2/2]

template<typename Derived>

ConstRowXpr row ( Index i ) const

inline

This is the const version of row().

◆ rows()

template<typename Derived>

Index rows ( ) const

inline

Returns: the number of rows.

See also: cols()

Referenced by SparseMatrixBase< SparseDenseOuterProduct >::imag(), SparseMatrixBase< SparseDenseOuterProduct >::innerSize(), innerVectors(), SparseMatrixBase< SparseDenseOuterProduct >::outerSize(), SparseMatrixBase< SparseDenseOuterProduct >::size(), CholmodBase< _MatrixType, _UpLo, CholmodSimplicialLLT >::solve(), IterativeSolverBase< BiCGSTAB >::solve(), SimplicialCholeskyBase< SimplicialLLT >::solve(), SparseLU< _MatrixType, Derived >::solve(), SuperLUBase< _MatrixType, SuperLU >::solve(), UmfPackLU< _MatrixType >::solve(), and SparseMatrixBase< SparseDenseOuterProduct >::topLeftCorner().

◆ segment() [1/4]

template<typename Derived>

SegmentReturnType segment	(	Index	start,
		Index	n )

inline

Returns: a dynamic-size expression of a segment (i.e. a vector block) in *this.

This is only for vectors (either row-vectors or column-vectors), i.e. matrices which are known at compile-time to have either one row or one column.

Parameters

start	the first coefficient in the segment
n	the number of coefficients in the segment

Example:

RowVector4i v = RowVector4i::Random();
cout << "Here is the vector v:" << endl << v << endl;
cout << "Here is v.segment(1, 2):" << endl << v.segment(1, 2) << endl;
v.segment(1, 2).setZero();
cout << "Now the vector v is:" << endl << v << endl;

Output:

Here is the vector v:
 7 -2  6  6
Here is v.segment(1, 2):
-2  6
Now the vector v is:
7 0 0 6

Note: Even though the returned expression has dynamic size, in the case when it is applied to a fixed-size vector, it inherits a fixed maximal size, which means that evaluating it does not cause a dynamic memory allocation.

See also: class Block, segment(Index)

◆ segment() [2/4]

template<typename Derived>

ConstSegmentReturnType segment	(	Index	start,
		Index	n ) const

inline

This is the const version of segment(Index,Index).

◆ segment() [3/4]

template<typename Derived>

template<int N>

FixedSegmentReturnType< N >::Type segment	(	Index	start,
		Index	n = N )

inline

Returns: a fixed-size expression of a segment (i.e. a vector block) in *this

This is only for vectors (either row-vectors or column-vectors), i.e. matrices which are known at compile-time to have either one row or one column.

Template Parameters

N	the number of coefficients in the segment as specified at compile-time

Parameters

start	the index of the first element in the segment
n	the number of coefficients in the segment as specified at compile-time

The compile-time and run-time information should not contradict. In other words, n should equal N unless N is Dynamic.

Example:

RowVector4i v = RowVector4i::Random();
cout << "Here is the vector v:" << endl << v << endl;
cout << "Here is v.segment<2>(1):" << endl << v.segment<2>(1) << endl;
v.segment<2>(2).setZero();
cout << "Now the vector v is:" << endl << v << endl;

Output:

Here is the vector v:
 7 -2  6  6
Here is v.segment<2>(1):
-2  6
Now the vector v is:
 7 -2  0  0

See also: class Block

◆ segment() [4/4]

template<typename Derived>

template<int N>

ConstFixedSegmentReturnType< N >::Type segment	(	Index	start,
		Index	n = N ) const

inline

This is the const version of segment<int>(Index).

◆ size()

template<typename Derived>

Index size ( ) const

inline

Returns: the number of coefficients, which is rows()*cols().

See also: rows(), cols().

◆ tail() [1/4]

template<typename Derived>

SegmentReturnType tail ( Index n )

inline

Returns: a dynamic-size expression of the last coefficients of *this.

This is only for vectors (either row-vectors or column-vectors), i.e. matrices which are known at compile-time to have either one row or one column.

Parameters

n	the number of coefficients in the segment

Example:

RowVector4i v = RowVector4i::Random();
cout << "Here is the vector v:" << endl << v << endl;
cout << "Here is v.tail(2):" << endl << v.tail(2) << endl;
v.tail(2).setZero();
cout << "Now the vector v is:" << endl << v << endl;

Output:

Here is the vector v:
 7 -2  6  6
Here is v.tail(2):
6 6
Now the vector v is:
 7 -2  0  0

Note: Even though the returned expression has dynamic size, in the case when it is applied to a fixed-size vector, it inherits a fixed maximal size, which means that evaluating it does not cause a dynamic memory allocation.

See also: class Block, block(Index,Index)

◆ tail() [2/4]

template<typename Derived>

ConstSegmentReturnType tail ( Index n ) const

inline

This is the const version of tail(Index).

◆ tail() [3/4]

template<typename Derived>

template<int N>

FixedSegmentReturnType< N >::Type tail ( Index n = N )

inline

Returns: a fixed-size expression of the last coefficients of *this.

This is only for vectors (either row-vectors or column-vectors), i.e. matrices which are known at compile-time to have either one row or one column.

Template Parameters

N	the number of coefficients in the segment as specified at compile-time

Parameters

n	the number of coefficients in the segment as specified at run-time

The compile-time and run-time information should not contradict. In other words, n should equal N unless N is Dynamic.

Example:

RowVector4i v = RowVector4i::Random();
cout << "Here is the vector v:" << endl << v << endl;
cout << "Here is v.tail(2):" << endl << v.tail<2>() << endl;
v.tail<2>().setZero();
cout << "Now the vector v is:" << endl << v << endl;

Output:

Here is the vector v:
 7 -2  6  6
Here is v.tail(2):
6 6
Now the vector v is:
 7 -2  0  0

See also: class Block

◆ tail() [4/4]

template<typename Derived>

template<int N>

ConstFixedSegmentReturnType< N >::Type tail ( Index n = N ) const

inline

This is the const version of tail<int>.

◆ topLeftCorner() [1/6]

template<typename Derived>

template<int CRows, int CCols>

Block< Derived, CRows, CCols > topLeftCorner ( )

inline

Returns: an expression of a fixed-size top-left corner of *this.

The template parameters CRows and CCols are the number of rows and columns in the corner.

Example:

Matrix4i m = Matrix4i::Random();
cout << "Here is the matrix m:" << endl << m << endl;
cout << "Here is m.topLeftCorner<2,2>():" << endl;
cout << m.topLeftCorner<2,2>() << endl;
m.topLeftCorner<2,2>().setZero();
cout << "Now the matrix m is:" << endl << m << endl;

Output:

Here is the matrix m:
 7  9 -5 -3
-2 -6  1  0
 6 -3  0  9
 6  6  3  9
Here is m.topLeftCorner<2,2>():
 7  9
-2 -6
Now the matrix m is:
 0  0 -5 -3
 0  0  1  0
 6 -3  0  9
 6  6  3  9

See also: class Block, block(Index,Index,Index,Index)

◆ topLeftCorner() [2/6]

template<typename Derived>

template<int CRows, int CCols>

const Block< const Derived, CRows, CCols > topLeftCorner ( ) const

inline

This is the const version of topLeftCorner<int, int>().

◆ topLeftCorner() [3/6]

template<typename Derived>

Block< Derived > topLeftCorner	(	Index	cRows,
		Index	cCols )

inline

Returns: a dynamic-size expression of a top-left corner of *this.

Parameters

cRows	the number of rows in the corner
cCols	the number of columns in the corner

Example:

Matrix4i m = Matrix4i::Random();
cout << "Here is the matrix m:" << endl << m << endl;
cout << "Here is m.topLeftCorner(2, 2):" << endl;
cout << m.topLeftCorner(2, 2) << endl;
m.topLeftCorner(2, 2).setZero();
cout << "Now the matrix m is:" << endl << m << endl;

Output:

Here is the matrix m:
 7  9 -5 -3
-2 -6  1  0
 6 -3  0  9
 6  6  3  9
Here is m.topLeftCorner(2, 2):
 7  9
-2 -6
Now the matrix m is:
 0  0 -5 -3
 0  0  1  0
 6 -3  0  9
 6  6  3  9

See also: class Block, block(Index,Index,Index,Index)

◆ topLeftCorner() [4/6]

template<typename Derived>

template<int CRows, int CCols>

Block< Derived, CRows, CCols > topLeftCorner	(	Index	cRows,
		Index	cCols )

inline

Returns: an expression of a top-left corner of *this.

Template Parameters

CRows	number of rows in corner as specified at compile-time
CCols	number of columns in corner as specified at compile-time

Parameters

cRows	number of rows in corner as specified at run-time
cCols	number of columns in corner as specified at run-time

Example:

Matrix4i m = Matrix4i::Random();
cout << "Here is the matrix m:" << endl << m << endl;
cout << "Here is m.topLeftCorner<2,Dynamic>(2,2):" << endl;
cout << m.topLeftCorner<2,Dynamic>(2,2) << endl;
m.topLeftCorner<2,Dynamic>(2,2).setZero();
cout << "Now the matrix m is:" << endl << m << endl;

Output:

Here is the matrix m:
 7  9 -5 -3
-2 -6  1  0
 6 -3  0  9
 6  6  3  9
Here is m.topLeftCorner<2,Dynamic>(2,2):
 7  9
-2 -6
Now the matrix m is:
 0  0 -5 -3
 0  0  1  0
 6 -3  0  9
 6  6  3  9

See also: class Block

◆ topLeftCorner() [5/6]

template<typename Derived>

const Block< const Derived > topLeftCorner	(	Index	cRows,
		Index	cCols ) const

inline

This is the const version of topLeftCorner(Index, Index).

◆ topLeftCorner() [6/6]

template<typename Derived>

template<int CRows, int CCols>

const Block< const Derived, CRows, CCols > topLeftCorner	(	Index	cRows,
		Index	cCols ) const

inline

This is the const version of topLeftCorner<int, int>(Index, Index).

◆ topRightCorner() [1/6]

template<typename Derived>

template<int CRows, int CCols>

Block< Derived, CRows, CCols > topRightCorner ( )

inline

Returns: an expression of a fixed-size top-right corner of *this.

Template Parameters

CRows	the number of rows in the corner
CCols	the number of columns in the corner

Example:

Matrix4i m = Matrix4i::Random();
cout << "Here is the matrix m:" << endl << m << endl;
cout << "Here is m.topRightCorner<2,2>():" << endl;
cout << m.topRightCorner<2,2>() << endl;
m.topRightCorner<2,2>().setZero();
cout << "Now the matrix m is:" << endl << m << endl;

Output:

Here is the matrix m:
 7  9 -5 -3
-2 -6  1  0
 6 -3  0  9
 6  6  3  9
Here is m.topRightCorner<2,2>():
-5 -3
 1  0
Now the matrix m is:
 7  9  0  0
-2 -6  0  0
 6 -3  0  9
 6  6  3  9

See also: class Block, block<int,int>(Index,Index)

◆ topRightCorner() [2/6]

template<typename Derived>

template<int CRows, int CCols>

const Block< const Derived, CRows, CCols > topRightCorner ( ) const

inline

This is the const version of topRightCorner<int, int>().

◆ topRightCorner() [3/6]

template<typename Derived>

Block< Derived > topRightCorner	(	Index	cRows,
		Index	cCols )

inline

Returns: a dynamic-size expression of a top-right corner of *this.

Parameters

cRows	the number of rows in the corner
cCols	the number of columns in the corner

Example:

Matrix4i m = Matrix4i::Random();
cout << "Here is the matrix m:" << endl << m << endl;
cout << "Here is m.topRightCorner(2, 2):" << endl;
cout << m.topRightCorner(2, 2) << endl;
m.topRightCorner(2, 2).setZero();
cout << "Now the matrix m is:" << endl << m << endl;

Output:

Here is the matrix m:
 7  9 -5 -3
-2 -6  1  0
 6 -3  0  9
 6  6  3  9
Here is m.topRightCorner(2, 2):
-5 -3
 1  0
Now the matrix m is:
 7  9  0  0
-2 -6  0  0
 6 -3  0  9
 6  6  3  9

See also: class Block, block(Index,Index,Index,Index)

◆ topRightCorner() [4/6]

template<typename Derived>

template<int CRows, int CCols>

Block< Derived, CRows, CCols > topRightCorner	(	Index	cRows,
		Index	cCols )

inline

Returns: an expression of a top-right corner of *this.

Template Parameters

CRows	number of rows in corner as specified at compile-time
CCols	number of columns in corner as specified at compile-time

Parameters

cRows	number of rows in corner as specified at run-time
cCols	number of columns in corner as specified at run-time

Example:

Matrix4i m = Matrix4i::Random();
cout << "Here is the matrix m:" << endl << m << endl;
cout << "Here is m.topRightCorner<2,Dynamic>(2,2):" << endl;
cout << m.topRightCorner<2,Dynamic>(2,2) << endl;
m.topRightCorner<2,Dynamic>(2,2).setZero();
cout << "Now the matrix m is:" << endl << m << endl;

Output:

Here is the matrix m:
 7  9 -5 -3
-2 -6  1  0
 6 -3  0  9
 6  6  3  9
Here is m.topRightCorner<2,Dynamic>(2,2):
-5 -3
 1  0
Now the matrix m is:
 7  9  0  0
-2 -6  0  0
 6 -3  0  9
 6  6  3  9

See also: class Block

◆ topRightCorner() [5/6]

template<typename Derived>

const Block< const Derived > topRightCorner	(	Index	cRows,
		Index	cCols ) const

inline

This is the const version of topRightCorner(Index, Index).

◆ topRightCorner() [6/6]

template<typename Derived>

template<int CRows, int CCols>

const Block< const Derived, CRows, CCols > topRightCorner	(	Index	cRows,
		Index	cCols ) const

inline

This is the const version of topRightCorner<int, int>(Index, Index).

◆ topRows() [1/4]

template<typename Derived>

RowsBlockXpr topRows ( Index n )

inline

Returns: a block consisting of the top rows of *this.

Parameters

n	the number of rows in the block

Example:

Array44i a = Array44i::Random();
cout << "Here is the array a:" << endl << a << endl;
cout << "Here is a.topRows(2):" << endl;
cout << a.topRows(2) << endl;
a.topRows(2).setZero();
cout << "Now the array a is:" << endl << a << endl;

Output:

Here is the array a:
 7  9 -5 -3
-2 -6  1  0
 6 -3  0  9
 6  6  3  9
Here is a.topRows(2):
 7  9 -5 -3
-2 -6  1  0
Now the array a is:
 0  0  0  0
 0  0  0  0
 6 -3  0  9
 6  6  3  9

See also: class Block, block(Index,Index,Index,Index)

◆ topRows() [2/4]

template<typename Derived>

ConstRowsBlockXpr topRows ( Index n ) const

inline

This is the const version of topRows(Index).

◆ topRows() [3/4]

template<typename Derived>

template<int N>

NRowsBlockXpr< N >::Type topRows ( Index n = N )

inline

Returns: a block consisting of the top rows of *this.

Template Parameters

N	the number of rows in the block as specified at compile-time

Parameters

n	the number of rows in the block as specified at run-time

The compile-time and run-time information should not contradict. In other words, n should equal N unless N is Dynamic.

Example:

Array44i a = Array44i::Random();
cout << "Here is the array a:" << endl << a << endl;
cout << "Here is a.topRows<2>():" << endl;
cout << a.topRows<2>() << endl;
a.topRows<2>().setZero();
cout << "Now the array a is:" << endl << a << endl;

Output:

Here is the array a:
 7  9 -5 -3
-2 -6  1  0
 6 -3  0  9
 6  6  3  9
Here is a.topRows<2>():
 7  9 -5 -3
-2 -6  1  0
Now the array a is:
 0  0  0  0
 0  0  0  0
 6 -3  0  9
 6  6  3  9

See also: class Block, block(Index,Index,Index,Index)

◆ topRows() [4/4]

template<typename Derived>

template<int N>

ConstNRowsBlockXpr< N >::Type topRows ( Index n = N ) const

inline

This is the const version of topRows<int>().

◆ twistedBy()

template<typename Derived>

SparseSymmetricPermutationProduct< Derived, Upper|Lower > twistedBy ( const PermutationMatrix< Dynamic, Dynamic, Index > & perm ) const

inline

Returns: an expression of P H P^-1 where H is the matrix represented by *this

◆ unaryExpr()

template<typename Derived>

template<typename CustomUnaryOp>

const CwiseUnaryOp< CustomUnaryOp, const Derived > unaryExpr ( const CustomUnaryOp & func = CustomUnaryOp() ) const

inline

Apply a unary operator coefficient-wise.

Parameters

[in] func Functor implementing the unary operator

Template Parameters

CustomUnaryOp Type of func

Returns: An expression of a custom coefficient-wise unary operator func of *this

The function ptr_fun() from the C++ standard library can be used to make functors out of normal functions.

Example:

#include <Eigen/Core>
#include <iostream>
using namespace Eigen;
using namespace std;

// define function to be applied coefficient-wise
double ramp(double x)
{
  if (x > 0)
    return x;
  else
    return 0;
}

int main(int, char**)
{
  Matrix4d m1 = Matrix4d::Random();
  cout << m1 << endl << "becomes: " << endl << m1.unaryExpr(ptr_fun(ramp)) << endl;
  return 0;
}

Output:

   0.68   0.823  -0.444   -0.27
 -0.211  -0.605   0.108  0.0268
  0.566   -0.33 -0.0452   0.904
  0.597   0.536   0.258   0.832
becomes:
  0.68  0.823      0      0
     0      0  0.108 0.0268
 0.566      0      0  0.904
 0.597  0.536  0.258  0.832

Genuine functors allow for more possibilities, for instance it may contain a state.

Example:

#include <Eigen/Core>
#include <iostream>
using namespace Eigen;
using namespace std;

// define a custom template unary functor
template<typename Scalar>
struct CwiseClampOp {
  CwiseClampOp(const Scalar& inf, const Scalar& sup) : m_inf(inf), m_sup(sup) {}
  const Scalar operator()(const Scalar& x) const { return x<m_inf ? m_inf : (x>m_sup ? m_sup : x); }
  Scalar m_inf, m_sup;
};

int main(int, char**)
{
  Matrix4d m1 = Matrix4d::Random();
  cout << m1 << endl << "becomes: " << endl << m1.unaryExpr(CwiseClampOp<double>(-0.5,0.5)) << endl;
  return 0;
}

Output:

   0.68   0.823  -0.444   -0.27
 -0.211  -0.605   0.108  0.0268
  0.566   -0.33 -0.0452   0.904
  0.597   0.536   0.258   0.832
becomes:
    0.5     0.5  -0.444   -0.27
 -0.211    -0.5   0.108  0.0268
    0.5   -0.33 -0.0452     0.5
    0.5     0.5   0.258     0.5

See also: class CwiseUnaryOp, class CwiseBinaryOp

◆ unaryViewExpr()

template<typename Derived>

template<typename CustomViewOp>

const CwiseUnaryView< CustomViewOp, const Derived > unaryViewExpr ( const CustomViewOp & func = CustomViewOp() ) const

inline

Returns: an expression of a custom coefficient-wise unary operator func of *this

The template parameter CustomUnaryOp is the type of the functor of the custom unary operator.

Example:

#include <Eigen/Core>
#include <iostream>
using namespace Eigen;
using namespace std;

// define a custom template unary functor
template<typename Scalar>
struct CwiseClampOp {
  CwiseClampOp(const Scalar& inf, const Scalar& sup) : m_inf(inf), m_sup(sup) {}
  const Scalar operator()(const Scalar& x) const { return x<m_inf ? m_inf : (x>m_sup ? m_sup : x); }
  Scalar m_inf, m_sup;
};

int main(int, char**)
{
  Matrix4d m1 = Matrix4d::Random();
  cout << m1 << endl << "becomes: " << endl << m1.unaryExpr(CwiseClampOp<double>(-0.5,0.5)) << endl;
  return 0;
}

Output:

   0.68   0.823  -0.444   -0.27
 -0.211  -0.605   0.108  0.0268
  0.566   -0.33 -0.0452   0.904
  0.597   0.536   0.258   0.832
becomes:
    0.5     0.5  -0.444   -0.27
 -0.211    -0.5   0.108  0.0268
    0.5   -0.33 -0.0452     0.5
    0.5     0.5   0.258     0.5

See also: class CwiseUnaryOp, class CwiseBinaryOp

The documentation for this class was generated from the following files:

Detailed Description

Public Types

Public Member Functions

Member Enumeration Documentation

◆ anonymous enum

Member Function Documentation

◆ binaryExpr()

◆ block() [1/6]

◆ block() [2/6]

◆ block() [3/6]

◆ block() [4/6]

◆ block() [5/6]

◆ block() [6/6]

◆ bottomLeftCorner() [1/6]

◆ bottomLeftCorner() [2/6]

◆ bottomLeftCorner() [3/6]

◆ bottomLeftCorner() [4/6]

◆ bottomLeftCorner() [5/6]

◆ bottomLeftCorner() [6/6]

◆ bottomRightCorner() [1/6]

◆ bottomRightCorner() [2/6]

◆ bottomRightCorner() [3/6]

◆ bottomRightCorner() [4/6]

◆ bottomRightCorner() [5/6]

◆ bottomRightCorner() [6/6]

◆ bottomRows() [1/4]

◆ bottomRows() [2/4]

◆ bottomRows() [3/4]

◆ bottomRows() [4/4]

◆ cast()

◆ col() [1/2]

◆ col() [2/2]

◆ cols()

◆ conjugate()

◆ cwiseAbs()

◆ cwiseAbs2()

◆ cwiseEqual() [1/2]

◆ cwiseEqual() [2/2]

◆ cwiseInverse()

◆ cwiseMax() [1/2]

◆ cwiseMax() [2/2]

◆ cwiseMin() [1/2]

◆ cwiseMin() [2/2]

◆ cwiseNotEqual()

◆ cwiseProduct()

◆ cwiseQuotient()

◆ cwiseSqrt()

◆ derived() [1/2]

◆ derived() [2/2]

◆ eval()

◆ head() [1/4]

◆ head() [2/4]

◆ head() [3/4]

◆ head() [4/4]

◆ imag() [1/2]

◆ imag() [2/2]

◆ innerSize()

◆ innerVector() [1/2]

◆ innerVector() [2/2]

◆ innerVectors() [1/2]

◆ innerVectors() [2/2]

◆ isVector()

◆ leftCols() [1/4]

◆ leftCols() [2/4]

◆ leftCols() [3/4]

◆ leftCols() [4/4]

◆ middleCols() [1/4]

◆ middleCols() [2/4]

◆ middleCols() [3/4]

◆ middleCols() [4/4]

◆ middleRows() [1/4]

◆ middleRows() [2/4]

◆ middleRows() [3/4]

◆ middleRows() [4/4]

◆ nonZeros()

◆ operator*() [1/4]

◆ operator*() [2/4]

◆ operator*() [3/4]

◆ operator*() [4/4]

◆ operator+()
