Eigen::DiagonalWrapper< DiagonalVectorType_ > Class Template Reference

#include <Eigen/src/Core/DiagonalMatrix.h>

Detailed Description

template<typename DiagonalVectorType_>
class Eigen::DiagonalWrapper< DiagonalVectorType_ >

Expression of a diagonal matrix.

Template Parameters

DiagonalVectorType_

the type of the vector of diagonal coefficients

This class is an expression of a diagonal matrix, but not storing its own vector of diagonal coefficients, instead wrapping an existing vector expression. It is the return type of MatrixBase::asDiagonal() and most of the time this is the only way that it is used.

See also

class DiagonalMatrix, class DiagonalBase, MatrixBase::asDiagonal()

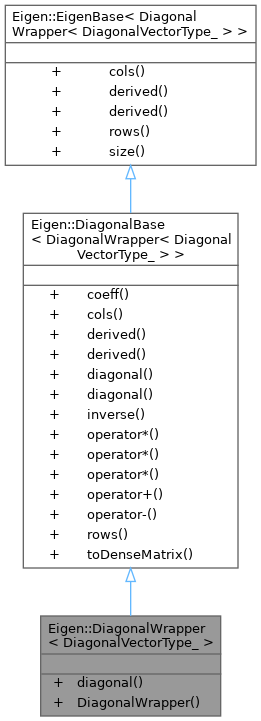

Inheritance diagram for Eigen::DiagonalWrapper< DiagonalVectorType_ >:

Public Member Functions
const DiagonalVectorType &	diagonal () const
	DiagonalWrapper (DiagonalVectorType &a_diagonal)
Public Member Functions inherited from Eigen::DiagonalBase< DiagonalWrapper< DiagonalVectorType_ > >
Scalar	coeff (Index row, Index col) const
constexpr Index	cols () const
DiagonalWrapper< DiagonalVectorType_ > &	derived ()
const DiagonalWrapper< DiagonalVectorType_ > &	derived () const
DiagonalVectorType &	diagonal ()
const DiagonalVectorType &	diagonal () const
const DiagonalInverseReturnType	inverse () const
const DiagonalProductReturnType< OtherDerived >	operator* (const DiagonalBase< OtherDerived > &other) const
const Product< DiagonalWrapper< DiagonalVectorType_ >, MatrixDerived, LazyProduct >	operator* (const MatrixBase< MatrixDerived > &matrix) const
const DiagonalScaleReturnType	operator* (const Scalar &scalar) const
const DiagonalSumReturnType< OtherDerived >	operator+ (const DiagonalBase< OtherDerived > &other) const
const DiagonalDifferenceReturnType< OtherDerived >	operator- (const DiagonalBase< OtherDerived > &other) const
constexpr Index	rows () const
DenseMatrixType	toDenseMatrix () const
Public Member Functions inherited from Eigen::EigenBase< DiagonalWrapper< DiagonalVectorType_ > >
constexpr Index	cols () const noexcept
constexpr DiagonalWrapper< DiagonalVectorType_ > &	derived ()
constexpr const DiagonalWrapper< DiagonalVectorType_ > &	derived () const
constexpr Index	rows () const noexcept
constexpr Index	size () const noexcept

Additional Inherited Members
Public Types inherited from Eigen::EigenBase< DiagonalWrapper< DiagonalVectorType_ > >
typedef Eigen::Index	Index
	The interface type of indices.

Constructor & Destructor Documentation

DiagonalWrapper()

template<typename DiagonalVectorType_>

Eigen::DiagonalWrapper< DiagonalVectorType_ >::DiagonalWrapper ( DiagonalVectorType & a_diagonal )

inlineexplicit

Constructor from expression of diagonal coefficients to wrap.

Member Function Documentation

diagonal()

template<typename DiagonalVectorType_>

const DiagonalVectorType & Eigen::DiagonalWrapper< DiagonalVectorType_ >::diagonal ( ) const

inline

Returns

a const reference to the wrapped expression of diagonal coefficients.

---

The documentation for this class was generated from the following file:

• /builds/libeigen/eigen/Eigen/src/Core/DiagonalMatrix.h
